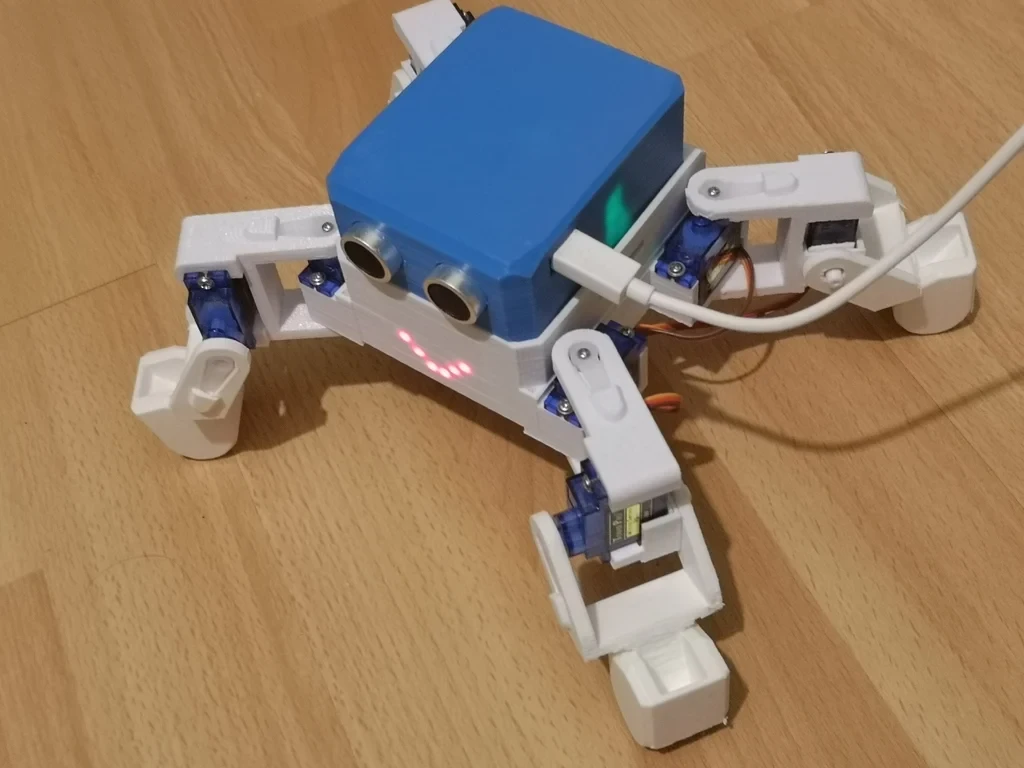

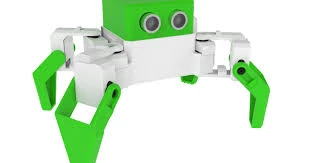

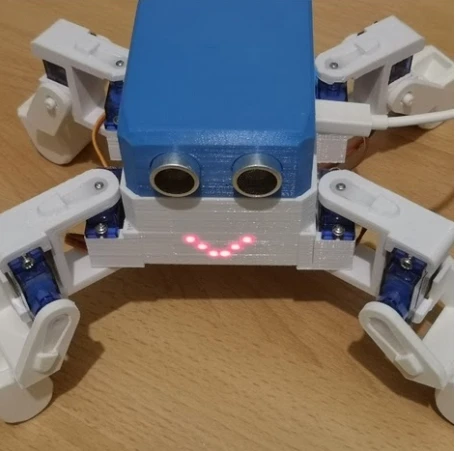

The Spider Otto Robot is a unique, bio-inspired quadruped or hexapod robot that combines the friendly, interactive personality of the Otto DIY robot with the mechanical walking ability of a spider-like leg system.

This hybrid design gives the robot expressive “Otto” features—eyes, sound, animations—while also enabling it to walk, crawl, and maneuver like a spider.

The robot is built using 3D-printed parts, servo motors, and Arduino/ESP32, making it perfect for STEM learning, robotics projects, prototyping, and biomimicry studies.

Key Highlights

1. Otto Head + Spider Legs

1. Otto-style 3D-printed head with ultrasonic "eyes"
2. Friendly, expressive front end
3. Paired with a spider/quadruped leg chassis
4. Creates a cute but capable robot creature

2. Realistic Spider-Like Locomotion

Depending on your build, you can choose:

1. Quadruped (4 legs × 3 DOF each) → 12 DOF
2. Hexapod (6 legs × 2 DOF each) → 12 DOF
3. Octopod (8 legs × 2 DOF each) → 16 DOF

Capable of:

1. Walking forward/backward
2. Turning left/right
3. Side-walking (crab gait)
4. Diagonal gait
5. Smooth crawling and pose transitions

3. Fully 3D-Printed Mechanism

Includes:

1. Otto head shell
2. Spider leg segments (coxa, femur, tibia)
3. Servo brackets
4. Body frame
5. Battery compartment
6. Sensor mounts

ALL parts can be printed with PLA, PETG, or ABS.

4. Multi-Servo Control System

Uses:

1. Arduino Mega / ESP32
2. PCA9685 16-channel servo driver for smooth motion
3. High-torque servos: MG996R / MG90S / DS3218 (depending on size)
4. Power supply: 5V–6V high-current BEC or Li-ion pack

5. Interactive Otto Features

The head includes:

1. Ultrasonic HC-SR04 eyes
2. Buzzer/speaker for sound
3. LED eyes or LED mouth matrix
4. Optional animations (blink, face expressions)
5. Optional pan-tilt head movement

This gives the spider robot personality—not just locomotion.

6. Sensors & Add-ons

Compatible sensors:

1. Ultrasonic sensor (eyes)
2. MPU6050 IMU for balance
3. Light sensors
4. Line sensors
5. ESP32-CAM for streaming video
6. IR remote control
7. Voice control module

7. Control Options

1. Otto-style dance mode
2. Autonomous walking
3. Obstacle avoidance
4. Bluetooth control via Android app
5. Wi-Fi web control (ESP32)
6. Predefined gait animation
7. Camera + object tracking (if using ESP32-CAM)

Applications

1. School/college major project
2. Biomimicry robotics
3. Autonomous walking research
4. STEM education
5. Entertainment & hobby robotics
6. Multi-servo gait programming learning
7. AI + robotics experiments
